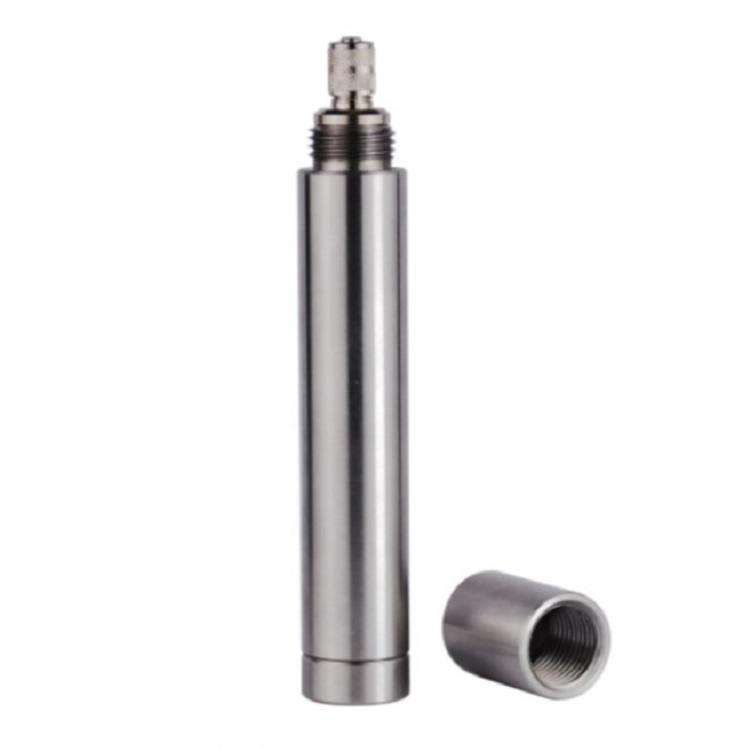

Active Helium Leak Hole – Helium Detection Simulation Leak Hole for High-Performance Applications

The Active Helium Leak Hole (TKD-02/03/04/05/06/07) is a precision tool for simulating helium leaks in high-performance applications. With a wide range of leak rates and compatible with He3/He4 gases, it ensures reliable testing and calibration for leak detection systems in industries such as aerospace, manufacturing, and research.

 Active Helium Leak Hole – Technical Specifications for Helium Detection Simulation

 Active Helium Leak Hole Advantages and Applications – High-Precision Helium Leak Simulation

Product Advantages:

• Wide Leak Rate Range: The Active Helium Leak Hole offers a wide range of leak rates, from 1.0E-2 mbar.L/s to 5.0E-9 mbar.L/s, providing flexibility for different testing needs.
• High Precision: With a leak rate tolerance of ±10%, this tool delivers highly accurate simulations, making it suitable for demanding applications.
• Gas Compatibility: It is compatible with both He3 and He4 gases, ideal for various industrial and scientific leak detection processes.
• Customizable Features: The outlet connector is customizable, allowing you to adapt it to your specific system requirements.
• Durability and Stability: Built with high-quality materials, it ensures stable performance over time with minimal temperature drift of just 0.1%/°C.

Applications of Active Helium Leak Hole:

• Aerospace Industry: Ideal for simulating helium leaks during spacecraft and satellite testing to ensure reliability and safety.
• Semiconductor Manufacturing: Used in leak testing of semiconductor equipment to guarantee precision and avoid malfunctions during production.
• Environmental Testing: Helps in detecting helium leaks in controlled environments, assisting in environmental monitoring and compliance.
• Research and Development: Provides an accurate and reliable tool for R&D teams working on new leak detection technologies and calibration systems.

Compatible Equipment:

• Used with advanced helium leak detectors and vacuum systems, ensuring the integrity of the test and validation process.

Process Flow for Using the Active Helium Leak Hole:

1. Connect the Active Helium Leak Hole to the helium leak detection system via the G1/4 connector.
2. Set the desired leak rate based on your testing requirements.
3. Perform the leak detection or simulation process.
4. Monitor the results to ensure accuracy and precision.

Installation of Equipment:

• The Active Helium Leak Hole is designed for easy integration with standard helium leak detection systems. Simply connect it to the leak detector using the G1/4 connector (customizable options available).

 Common Questions about the Active Helium Leak Hole – Helium Detection Simulation Leak Hole FAQs

1. What is the leak rate range of the Active Helium Leak Hole?
   The leak rate of the Active Helium Leak Hole ranges from 1.0E-2 mbar.L/s to 5.0E-9 mbar.L/s, providing flexibility for various testing needs.

2. What gases can the Active Helium Leak Hole simulate?
   The leak hole is compatible with He3 and He4 gases, allowing it to simulate a wide range of leak testing conditions.

3. What is the leak rate tolerance of the Active Helium Leak Hole?
   The leak rate tolerance is ±10%, ensuring precise and reliable testing in high-performance environments.

4. What is the chamber volume of the Active Helium Leak Hole?
   The chamber volume is 5 mL, which is ideal for small-scale simulations and leak tests.

5. Can the outlet connector be customized?
   Yes, the outlet connector is customizable to suit specific system requirements, providing additional flexibility for your testing setup.

6. Is the Active Helium Leak Hole suitable for aerospace testing?
   Yes, it is commonly used in the aerospace industry for simulating helium leaks in spacecraft and satellite testing.

7. Does the Active Helium Leak Hole have a valve or pressure gauge?
   No, the Active Helium Leak Hole does not come with a valve or pressure gauge, ensuring simple, efficient leak simulation.

8. How do I calibrate the Active Helium Leak Hole?
   The Active Helium Leak Hole comes with an internal metrology certificate or a third-party CNAS calibration certificate, ensuring it meets the required standards.

9. What is the temperature drift of the Active Helium Leak Hole?
   The temperature drift is minimal at 0.1%/°C, ensuring stable performance even under changing environmental conditions.

10. Can the Active Helium Leak Hole be used in environmental testing?
    Yes, it is highly effective for helium leak detection in environmental monitoring and compliance testing.
